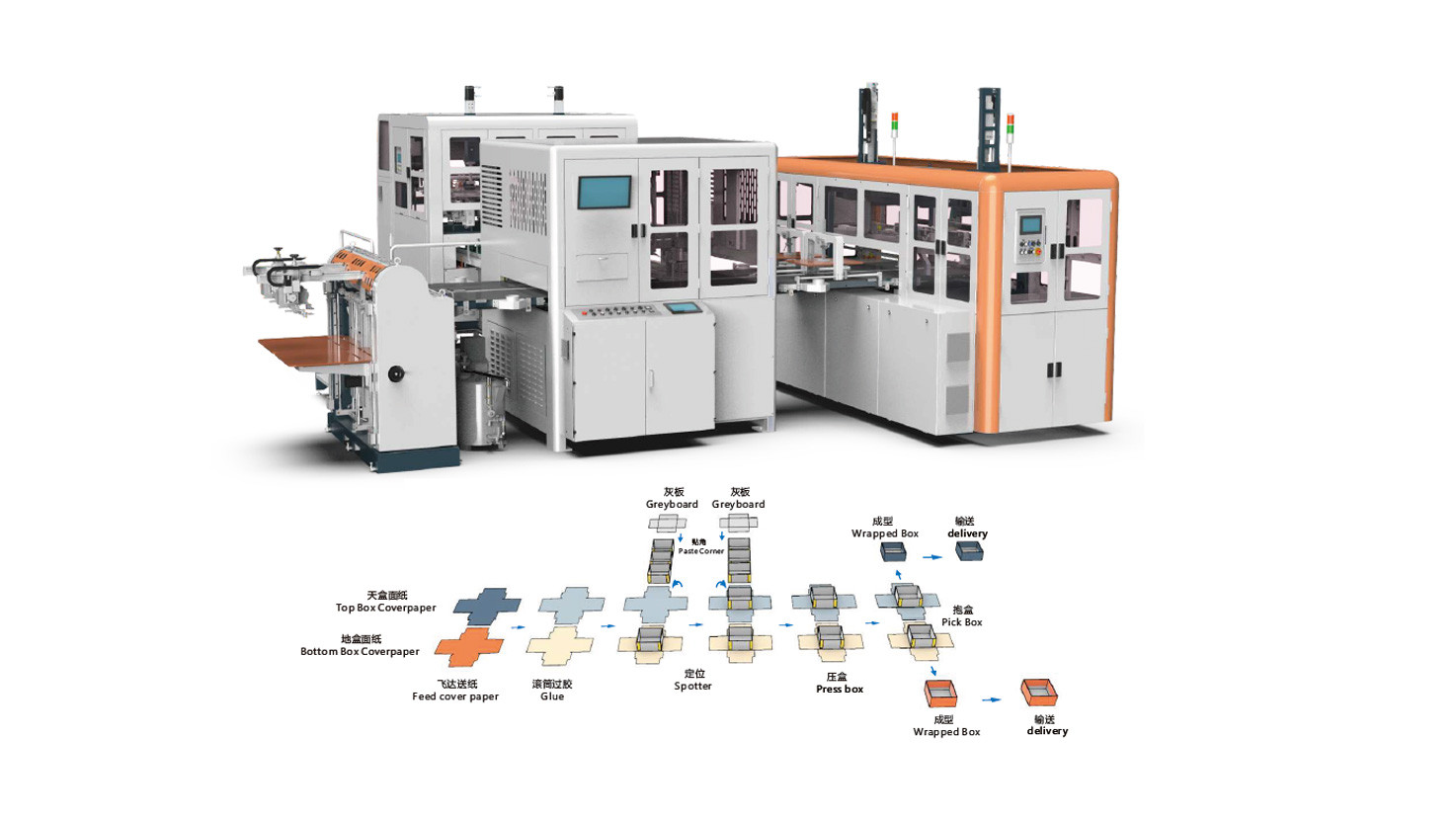

HM-DP4030P/HM-DP4030PS Automatic dual-channel Rigid box making machine product introduction
HM-DP4030P/HM-DP4030PS is a fully automatic dual-channel Rigid box making machine. It is suitable for the
simultaneous production of Top boxes and bottom boxes of various box types, such as mobile phone boxes, jewelry
boxes, cosmetic boxes, watch boxes, etc. The range of making boxes is larger, which can better meet the needs of the
modern packaging market. The appearance of the whole machine has been newly designed, which is safer and more
beautiful.
This machine adopts servo control system and image positioning system to realize automatic completion of paper
feeding, gluing, gray board feeding, four corner pasting, positioning, box holding, edge wrapping, ear folding and
folding forming.
Servo drives of well-known brands are used in the feeder, gluing and conveyor belts, which can be infinitely
variable, high-precision, easy to adjust, and save time; the positioning part uses image positioning systems and robots
to grab parts to improve positioning accuracy and efficiency, and the error range can reach ±0.05mm, and the
positioning and debugging speed is faster; the forming machine adopts THK linear guide rail and virtual electronic cam
drive, which is more stable and wear-resistant, and the movement is smoother, and the size range of folding depth and
folding ear length is also larger.
HM-DP4030P/HM-DP4030PS Automatic dual-channel Rigid box making machine unit features and standard equipment
1. Suitable for all kinds of rigid box automatic production line;
2. Double-station molding can complete the molding of the top box
and bottom box at the same time;
3. Parametric intelligent adjustment;
4. The long side and short side are layered and formed;
5. Double-station feeding facial paper and gray cardboard function;
6. The box-out direction is parallel to the main conveyor belt;
7. 24-hour glue timing heating function;
8. The molding machine has built-in 300 product formulas;
9. The four-corner heating is controlled by a separate man-machine
interface; (Details please check the note)
10. Multifunctional Robot Vision Image Positioning System (positioning
error ±0.05mm); (Details please check the note)
11. Rigid box automatic lifting and extraction device; (Details please
check the note)
12. Setting of all computer function parameters;
13. Auto error stop and display;

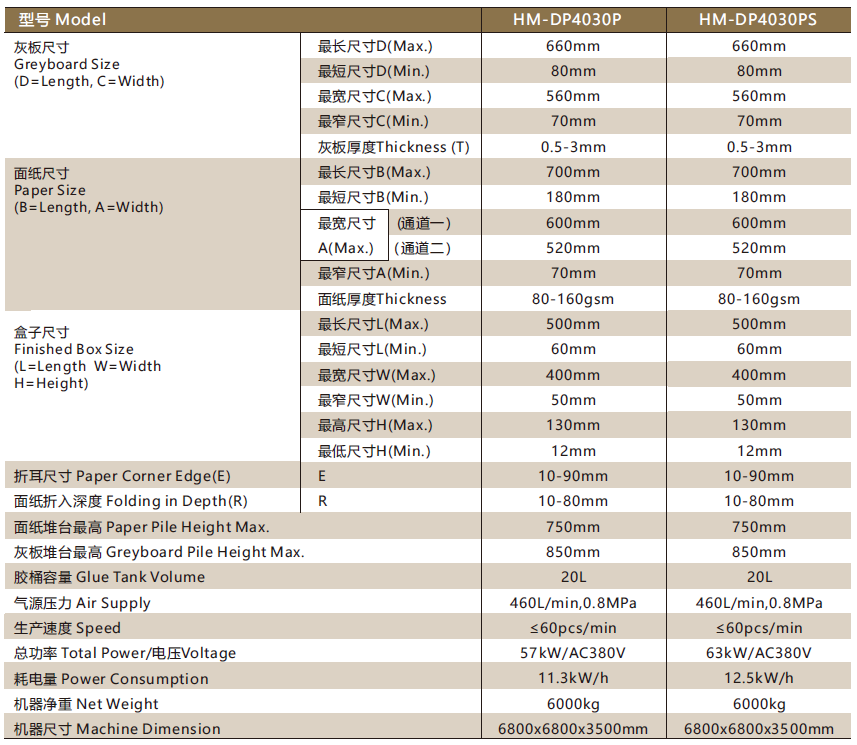

The main technical parameters of HM-DP4030P/HM-DP4030PS Automatic dual-channel Rigid box making machine
