Guangdong Hongming Intelligent Joint Stock Co.,Ltd

位置:首頁 > Products > Gluing machine
HM-600G/HM-800G Automatic Gluing and Spotter Machine
HM-600G/HM-800G Automatic Gluing and Spotter Machine HM-600G/HM-800G Automatic Gluing and Spotter Machine
  • Commodity name:

    HM-600G/HM-800G Automatic Gluing and Spotter Machine
  • Shelf time:

    2024-08-24 15:12:03
  • Browse times:

    1610次
  • HM-600G/HM-800G Automatic Gluing and Spotter Machine Functional specificationsHM-600G/HM-800G Automatic Gluing and Spotter Machineis an automatic equipment for high-precision positioning of largesizep
  • Details of the product

HM-600G/HM-800G Automatic Gluing and Spotter Machine Functional specifications

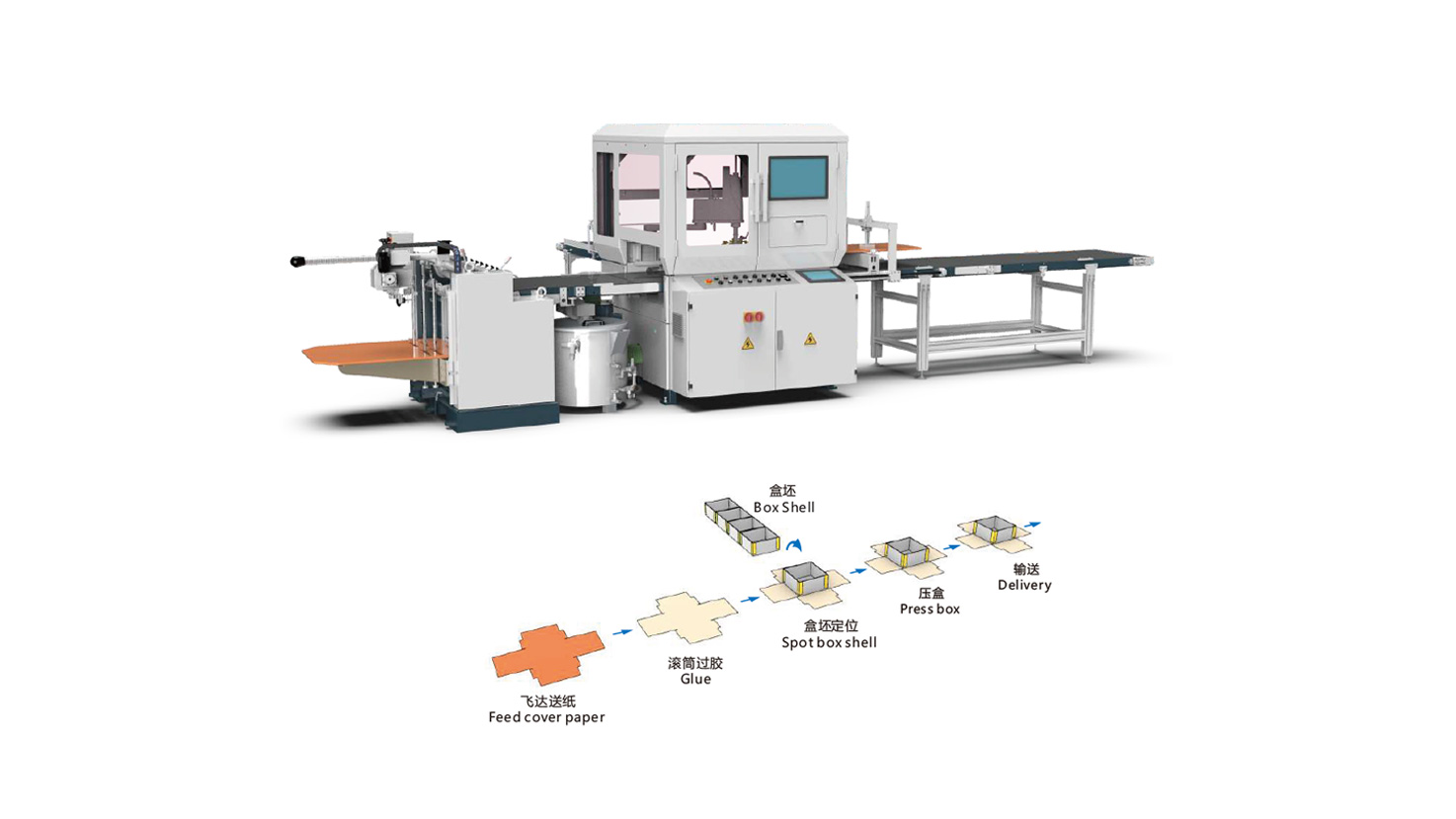

HM-600G/HM-800G Automatic Gluing and Spotter Machine
is an automatic equipment for high-precision positioning of largesize
premium boxes. It's suitable to all kinds of rigid box
positioning process.
This machine adopts PLC and touch screen man-machine
control system and CCD positioning system to realize paper
feeding, glue and positioning automatically. In feeder, the
conveyor and conveyor belts are driven by servo system .The
machine has continuously variable transmission and enjoys high
accuracy ,easy adjusting ,and high efficency .The spotting unit
adopts camera tracing system and robot arm to pick and spot the
greyboard ,enhancing the spotter accuracy to ±0.05mm, and the
speed is faster.

>?Features and function

1. Automatic production for the positioning process of various ;
paper and box shells;
2. Parameter adopts computer digital setting;
3. Auto error stop and display;
4. Automatically feed paper and box shell;
5. 24-hour glue timing heating function;
6. Adopts servo motor control system;
7. Spotter by camera tracing system and SCARA (Selective Compliance
Assembly Robot Arm)(positioning accuracy±0.05mm);(Details please check
the note)
8. Automatic control system of glue viscosity (optional); (Details please check
the note)

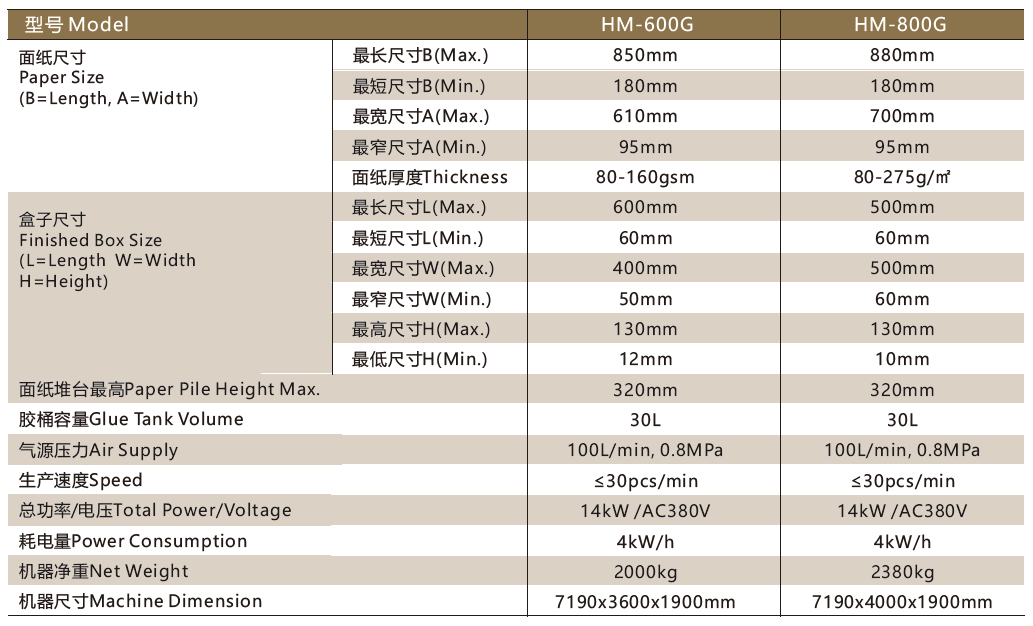

>Technical parameters





Note:

1. The Card Paper size is determined by the cardboard's size and quality.

2. The production speed of this machine is determined by the paper quality, the box shell size/quality and cardboard size/quality.
